PRODUCT PROFILE

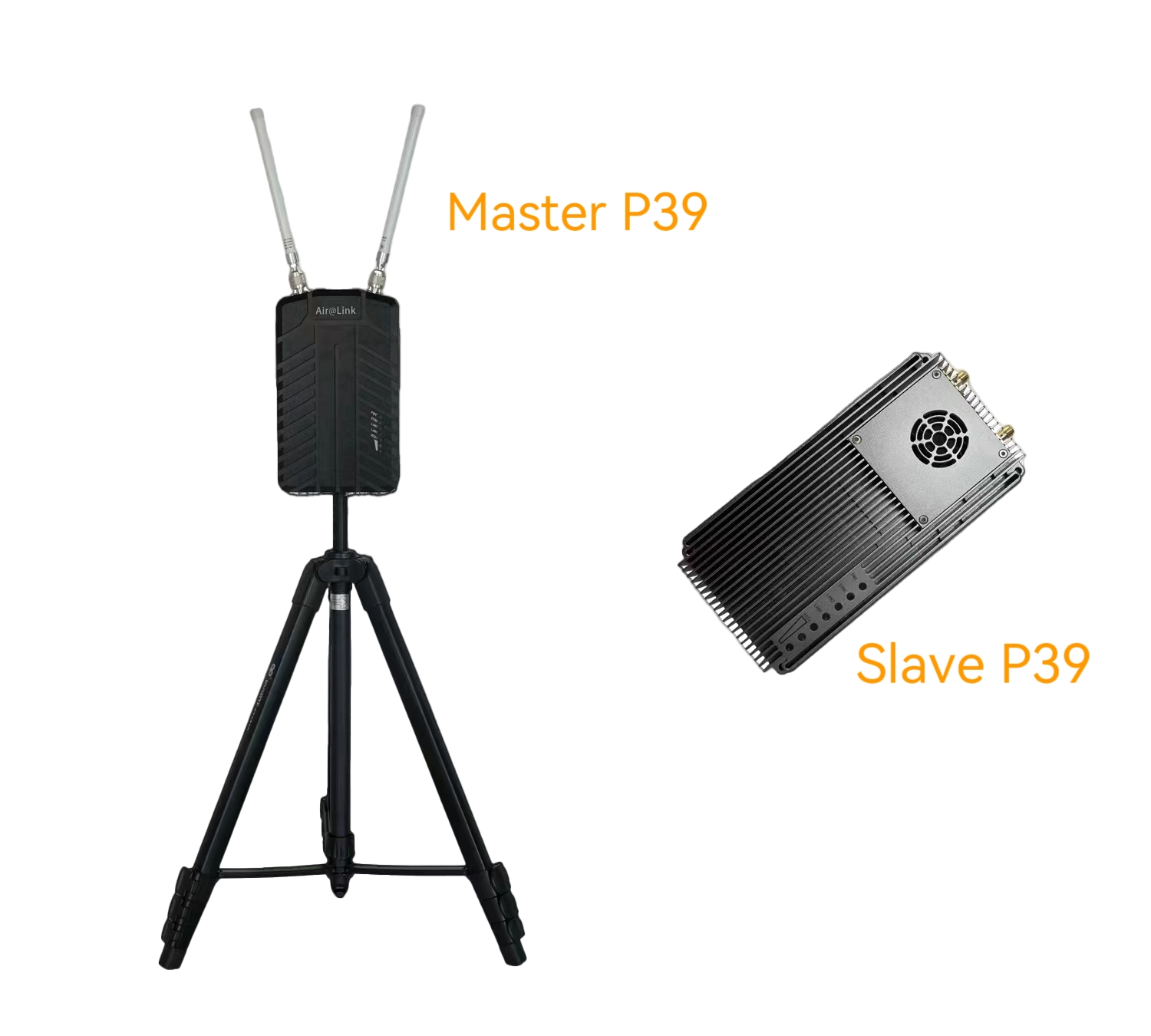

Airlink microbase station adopts an integrated, all-in-one design. Waterproof, dustproof and anti-corrosion design, support independent battery power supply, simple assembly, easy to disassemble. Airlink is a TDD bidirectional digital remote wireless small ground station. With wifi, network port, serial port, SBUS and RS422 and other interfaces. Support real-time environment noise detection adaptive stream, automatic frequency selection, automatic retransmission mechanism, automatic antenna selection, automatic power control, manual frequency mode, multiple sets of coexistence and a series of features. Airlink has a transmission power of 5W/8W, and can support a maximum transmission distance of 100KM from air-to-ground under viewable conditions.

PRODUCT FEATURE

One solution for video,command and control,and telemetry
Air-to-ground visibility 60km+ when using omni antennas
Air-to-ground visibility 100km+ when using directional antennas
Adaptive channel selection(ACS)
Real-time interference detection and anti-interference algorithm processing
Automatic power control(APC)
Adaptive modulation mode based on Shannon limit(Auto MCS)
High reliability, good stability, and low delay
Dual network ports, four serial ports
IP65 protection
TEST VIDEO : https://www.youtube.com/watch?v=T6PMA5ivDtE
Email : hujj@okseeker.com

PRODUCT PARAMETERS

Description

Model

AIR@LINK-P39

Parameters

Working frequency

1350~1470MHz

Radio frequency channel

2T2R

Output power

39dBm(8W)

Channel bandwidth

10MHz

Modulation mode

QPSK,16QAM

Maximum rate

17Mbps@16QAM3/4

Communication encryption

AES256

Transmission delay

≤10ms

Interface index

Radio frequency interface

SMA *2

Device interface

Ethernet*1 , WIFI*1, TTL/RS232*2 , RS422*1, SBUS/TTL*1

Electrical specifications

Power consumption

Air unit≤48W; Ground unit≤12W

Level of Protection

Ground unit: IP53； Air unit: IP20

Physical specifications

Dimension(L*W*H)

250mm*150mm*34.5mm

Weight

Ground unit: 1.5kg； Air unit: 340g

Working voltage

DC 9~36V，Typical: 24V

Working temperature

-40~+65℃
